New Products

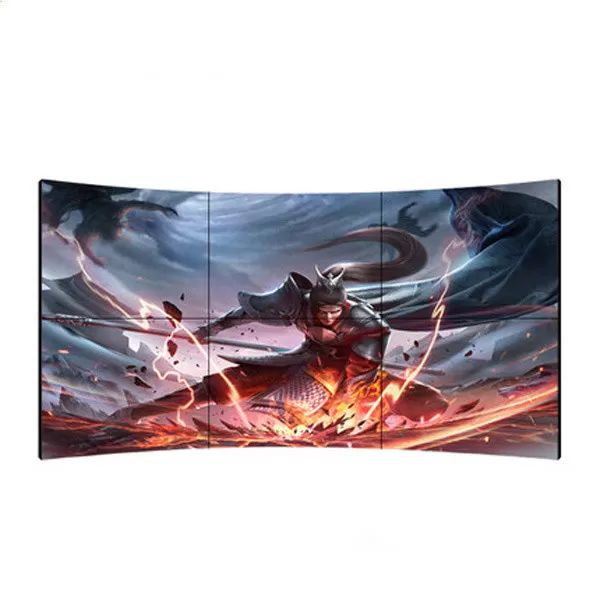

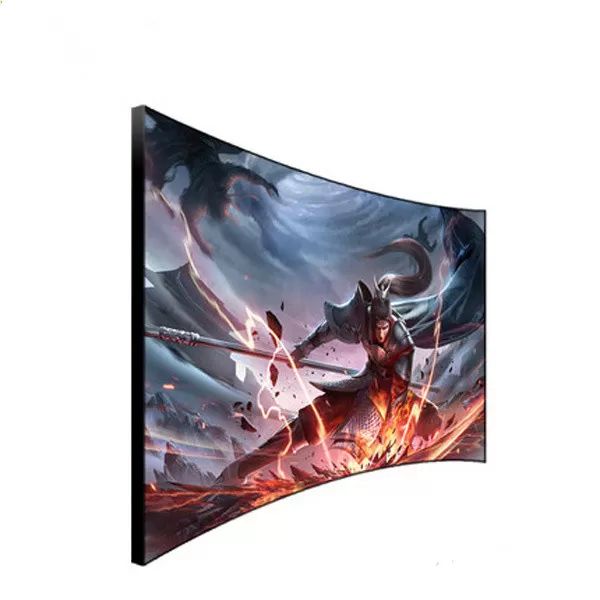

Curved LCD Display Monitor
Shenzhen TopAdkiosk Technology Co., Ltd's curved LCD display monitor is a 46-inch solution ideal for conference rooms and surveillance centers, featuring a high-quality SAMSUNG original industrial grade A+ panel known for its high brightness, contrast, and resolution.
Send Inquiry
Product Description
Crafted with aluminum material for enhanced thermal resistance, Curved LCD Display Monitor ensures energy efficiency and environmental friendliness, accompanied by a proprietary control system design and LED backlight source technology. The Curved LCD Display Monitor boasts an IPS hard screen panel with LCD backlight, delivering a seamless edge-to-edge display with perfect image and video quality. Supporting up to 256 tiled display units and irregular curved video wall configurations, Curved LCD Display Monitor offers a wide 178-degree viewing angle and advanced features such as 3D digital noise reduction processing and image stretching capability. With low power consumption and a long service life of up to 60,000 hours, it incorporates an ultra-quiet cooling fan design, intelligent temperature control circuit, and open bottom communication protocol for optimal performance and durability. Additionally, optional features include automatic backlight source adjustment technology for enhanced customization.
As a trusted manufacturer and supplier based in China, Shenzhen TopAdkiosk Technology Co., Ltd provides tailored solutions, competitive pricing, and a commitment to advanced technology and Curved LCD Display Monitor quality.
Detailed Product Description
| Type: | TFT | Max Resolution: | 3840x2160 |
|---|---|---|---|
| Weight: | 30kg | Viewing Angle: | 178 |
| Pixel Pitch: | 0.4845(H)*0.4845 (V) | Dimension: | 1075.58mm(W) X605.8mm |
| Ports Connect: | HDMI/DVI/VGA/DP | Power Consumption: | 250W |
| Display Area: | 1073.8(H)x604(V) | ||
| High Light: | ultra thin bezel video wall, ultra narrow bezel video wall | ||

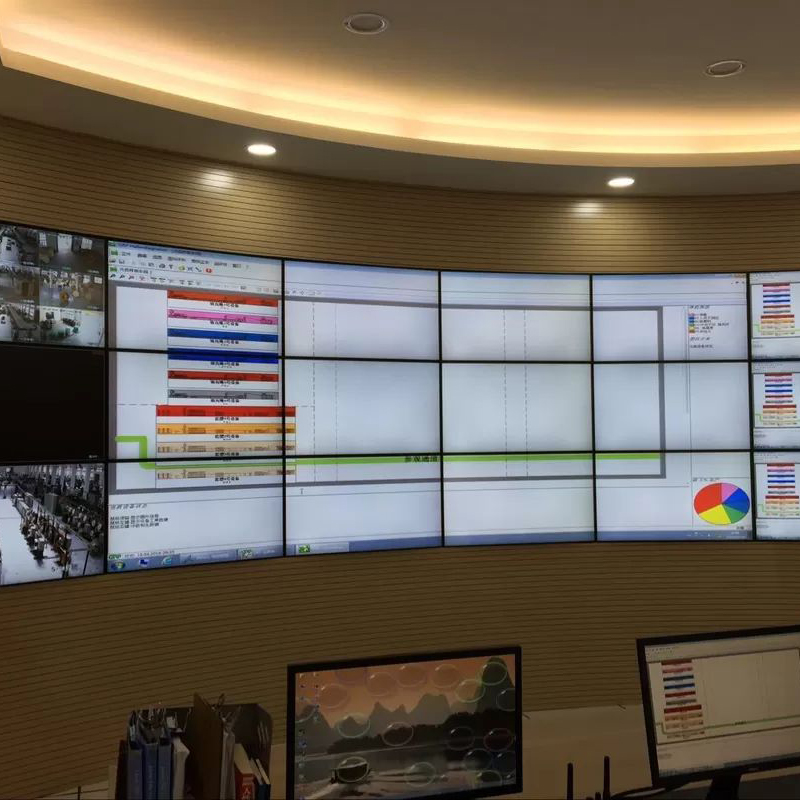

46 inch curved video wall for conference room and surveillance center
Description of LCD Video Wall
SAMSUNG original industrial grade A+ panel has high brightness, high contrast, high resolution
High thermal resistance of aluminum material, energy saving, environmental protection
Control system design by our own research and development
LED back light source technology
High thermal resistance of aluminum material, energy saving, environmental protection
Control system design by our own research and development
LED back light source technology
Product features:
* Using IPS hard screen panel, LCD backlight, 16 million color gamut, color temperature 100% NTSC100%, 10000K
* Compact and seamless, perfect for image and video display
* Supports 256 tiled display units and irregular curved video wall display units
* Wide viewing angle 178H/178V
* 3D digital noise reduction processing
* Supports any combination of screens
* Support single screen splicing
* Support image roaming combination
* Support image stretching
* Single screen power consumption is level 1, low carbon imprint, environmentally friendly, and has a normal service life of up to 60,000 hours.
* Ultra-quiet cooling fan design, intelligent temperature control circuit, intelligent protection system
* Open bottom communication protocol
* Support automatic backlight adjustment technology (optional)
Product Description
| TECHNICAL SPECIFICATION (LCD Video Wall Solution ) | |||
| PANEL PARAMETER | |||
| Panel Size | 55'' DID LCD Screen (super narrow bezel 3.5mm,with 500 nits LED Backlight) | ||
| Type | LED BACK LIGHT, LCD SCREEN | ||
| LCD Brand | LG/Samsung | ||
| Resolution (Default) | 1920 x 1080 (16:9) | ||
| Brightness | 500cd/m2 | ||
| Contrast Ratio | 4000 : 1 | ||
| Display Colour | 16:7M(8bit) | ||
| View Angle (H / V) | 178°/178° | ||
| Active Area (H / V) | 1209.6×680.4mm | ||
| Pixel Pitch (H / V) | 0.630*0.630mm | ||
| Response Time | <=6ms | ||
| IMAGE | |||
| Aspect ratio | 16:9 | ||
| Quality compensation technology | LTI,CTI | ||
| Motion compensation technolog | AUTO MOVE | ||
| Filter | 3D comb filtering, digital noise reduction | ||
| Video starnar | PAL,NTSC | ||
| Video Wall Controller(Built-in each Screen) | |||
| Digital signal input | HDMI×1; 1920x1080@60Hz backward compatibl | ||
| Computer signal input | VGA(DB-15) ×1;1920x1080@60Hz backward compatible | ||
| Digital signal input | DVI(DVI-I)×1;1080P(1920×1080) backward compatible | ||
| Composite Video Input/(AV) | CVBS(BNC)x1 | ||
| Composite Video Output | CVBS(BNC)x1 | ||
| RJ45 | 4 | ||
| USB | 1(optional) | ||
| Computer centralized control interface | RS232 | ||
| Power | |||
| Power Supply | AC100V~240 | ||
| Power Consumption (Max) | 240W | ||
| Standby Power Consumption | <=3 | ||
| Structure | |||
| Border dimension | Top: 2.3mm; bottom 1.2mm; Left: 2.3mm; Right: 1.2mm | ||
| External dimension | 1213.54*684.3*39.3mm | ||
| Weight of screen | 40Kgs | ||
| Gross weight | 110kg (2 sets in one honeycomb carton) | ||
| Honeycomb carton(2 in 1) | Wall lcd 137*96*72cm Accessories 64*40*39cm 229*20*14cm | ||
| Shell material | Metal shell,anti-static,anti-magnetic,anti-strong electric field interference | ||
| Installation way | Wall mount, floor standing mount,hanging mount | ||
| Temperature | |||
| Working Temperature | 0°C~50°C | ||
| Working Humidity | 20% - 80% | ||
| Storage Temperature | -20°C - 60°C | ||
Advantages of LCD Video Wall
♦ Reliable quality and low maintenance: Less thermal diffusivity makes the components and parts more stable.
♦ High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.
♦ Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.
♦ Low power consumption and low heat radiation
♦ Long service life lowers the cost of usage and maintenance
♦ Innovative and advanced: 42” to 60” Ultra thin bezel LCD video wall, the thinnest bezel up to 1.8mm
♦ Ultathin and lightweighted: The ultra thin and lightweighted design makes it easy to transport and install.
♦ Economical and practical: High performance and high quality make it cost less.
♦ High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.
♦ Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.
♦ Low power consumption and low heat radiation
♦ Long service life lowers the cost of usage and maintenance
♦ Innovative and advanced: 42” to 60” Ultra thin bezel LCD video wall, the thinnest bezel up to 1.8mm
♦ Ultathin and lightweighted: The ultra thin and lightweighted design makes it easy to transport and install.
♦ Economical and practical: High performance and high quality make it cost less.
FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
