LCD Monitor With Led Lights

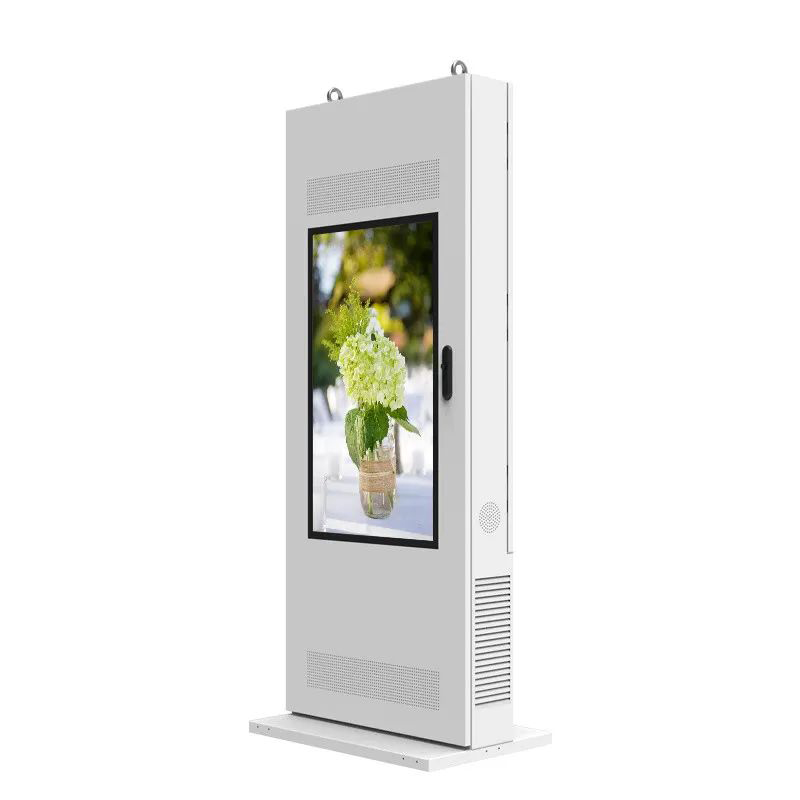

Shenzhen TopAdkiosk Technology Co., Ltd is a professional manufacturer and supplier of LCD Monitor With Led Lights, made of galvanized steel material, suitable for outdoor environments.

Send Inquiry

Product Description


TopAdkiosk's LCD Monitor With Led Lights are subject to a variety of hazardous working conditions and harsh environments. The core issues are heat from internal components, ambient temperature and solar radiation. Solar radiation itself may increase the temperature of exposed parts by more than 55 degrees Celsius, and internal components may be even hotter! Therefore, the internal housing temperature control system is a key factor in achieving different effects in different outdoor LCD systems despite installing the same LCD panel. High internal case temperature will affect the output brightness capability of the integrated LCD panel, which will not only greatly reduce the service life, but also increase power consumption.

LCD Monitor With Led Lights' IK Intelligent Temperature Control Technology - Integrated air conditioning/fan cooling system can greatly reduce the heat generated by the electronic components and the LCD screen of the internal housing, ensuring that the internal housing is in a thermal balance state without hot spots and black spots. At the same time, it can also ensure that the operating temperature of the internal shell is maintained between 5℃-25℃. Therefore, LCD Monitor With Led Lights' electronic system is very stable and extends the life of the LCD backlight.

As a manufacturer and supplier in China, we provide customized services to meet the special needs of our customers. We provide competitive price lists and ensure LCD Monitor With Led Lights quality. Shenzhen TopAdkiosk Technology Co., Ltd insists on providing advanced technology and high-quality products to provide customers with a satisfactory shopping experience.

Detailed Product Description

Pnale Size: 55 Inch Panel: 100% A+ Grade Brand Panel
Glass: AR Bonding,TM Glass,high Transparency Connectivity: LAN, WIFI, 3G(Optional)
Cooling System: Fan Cooling System Outdoor Totem Lcd Advertising Display Working Environement: -40~+55 Deg C,Humidity 50%
Touch Screen: Capacitive Touch Screen
High Light: outdoor lcd display screens, outdoor digital display screens



Active area size (W x H) 55”(1211*682mm)
Aspect Ratio 16:9 Portrait
Panel resolution (pixels) 1920*1080 (Full HD)
Luminance of white (Brightness) 2000 cd/m²
Contrast ratio 3000:1
Response time 5 ms
Colour Range 16.7 Million colours (max)
Viewing angle 178° horizontal / 178° vertical
Working parameters
Video inputs VGA HDMI
Audio Interface AUDIO IN/OUT
Auto Brightness Control Yes (Optional)
Temperature control system Intelligent air conditioner
Operating temperature range -40°C to +55°C
Storage Temperature 0 to 50C
Operating Humidity 5% to100%
Input voltage AC 108-115V,50/60Hz
AC 208-240 V, 50/60 Hz
Power Consumption 1.3 kW (Mainly for AC starting)
Waterproof enclosure
IP Class IP65
Enclosure material Zinc coated steel
Front glass type Strengthen 6mm AR glass
Packing Size 2160*960*520 mm
Weight 176kg

Configuration options:

1. Touch screen option Nano, Capacitive
2. Network version LAN/WIFI/3G as options, remote control from server
3. All in one PC Integrated PC board, custom hardware.
4. Standalone Ad function With professional advertising playerboard.
5. Monitor only With DVI/VGA input, flexible connecting your device.

Sun Readable

1. High brightness, high definition full HD lcd panel;
2. Anti-refiective glass with less than 3%low refiectivity;
3. Low humidity and constant temperature inner system enviroment allows LCD panel to perform optimally;
4. With light sensor, automatically adjust the brightness, environmental friendly and maximum energy saving.

Waterproof

1. Unique patented sealing technology;
2. Outdoor security anti-corrosion more than 8 years;
3. IP65 protection grade enclosure dust can not enter into the display under the 20 mbar pression, harmless when water jetting in ever direction.

Extreme Temperature

1. Intelligent air conditioner cooling system integrated cooling and heating;
2. Unique patented intelligent temperature control technology;
3. Work stably and efficiently in wide temperature range from -40°C to +55°C;
4. housing enclosure made of non-oxidizing material zinc coted steel.

Vandal Proof

1. Strong steel housing protects inner system from vandalism;
2. AR bonding TM protection 6mm laminated / tempered glass prevents direct LCD panel assault;
3. Easy to remove and reinstall housing protective makes provide simple but effective protection of core enclosure;
4. Enclosed parts are not reachable to passerby.
